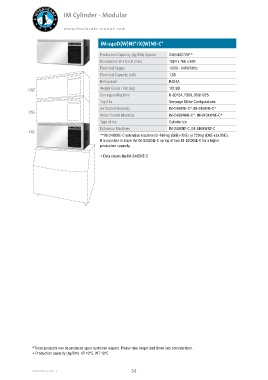

Page 33 - Hoshizaki 2016 produktkatalog(1)
P. 33
IM Cylinder - Modular
w w w. h o s h i z a k i - e u r o p e . c o m
IM-240D(W)NE*/X(W)NE-C*
Production Capacity (kg/24h) Approx. 240/480/720**
Dimensions W x D x H (mm) 1084 x 700 x 500
Electrical Supply 1/220 - 240V/50Hz
Electrical Capacity (kW) 1,33
Refrigerant R404A
DNE Weight Gross / Net (kg) 101/89
Corresponding Bins B-801SA, F650, 950/1025
Top Kits See page 66 for Configurations
XNE Air Cooled Model(s) IM-240DNE-C*, IM-240XNE-C*
Water Cooled Model(s) IM-240DWNE-C*, IM-240XWNE-C*
Type of Ice Cylinder Ice
XNE Extension Machines IM-240XNE-C, IM-240XWNE-C
**IM-240XNE-C extension machine for 480 kg (DNE+XNE) or 720 kg (DNE+2x XNE).
It is possible to stack the IM-240DNE-C on top of two IM-240XNE-C for a higher
production capacity.
• Data shows the IM-240DNE-C
*These products can be produced upon customer request. Please take longer lead times into consideration.
• Production capacity (kg/24h): AT 10°C, WT 10°C.
HOSHIZAKI–ISSUE 5 34
