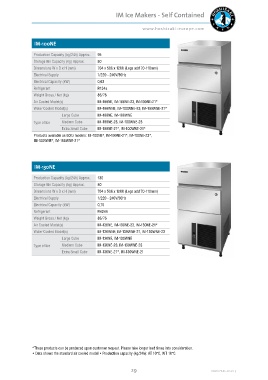

IM Ice Makers - Self Contained
w w w. h o s h i z a k i - e u r o p e . c o m
IM-100NE
Production Capacity (kg/24h) Approx. 95
Storage Bin Capacity (kg) Approx. 50
Dimensions W x D x H (mm) 704 x 506 x 1200 (Legs add 70-110mm)
Electrical Supply 1/220 - 240V/50Hz
Electrical Capacity (kW) 0,63
Refrigerant R134a
Weight Gross / Net (kg) 85/76
Air Cooled Model(s) IM-100NE, IM-100NE-23, IM-100NE-21*
Water Cooled Model(s) IM-100WNE, IM-100WNE-23, IM-100WNE-21*
Large Cube IM-100NE, IM-100WNE
Type of Ice Medium Cube IM-100NE-23, IM-100WNE-23
Extra Small Cube IM-100NE-21*, IM-100WNE-21*
Products available as 60hz models: IM-100NE*, IM-100NE-21*, IM-100NE-23*,
IM-100WNE*, IM-100WNE-21*
IM-130NE
Production Capacity (kg/24h) Approx. 130
50
Storage Bin Capacity (kg) Approx. 704 x 506 x 1200 (Legs add 70-110mm)
1/220 - 240V/50Hz
Dimensions W x D x H (mm) 0,70
R404A
Electrical Supply 85/76
IM-130NE, IM-130NE-23, IM-130NE-21*
Electrical Capacity (kW) IM-130WNE, IM-130WNE-21, IM-130WNE-23
IM-130NE, IM-130WNE
Refrigerant IM-130NE-23, IM-130WNE-23
IM-130NE-21*, IM-130WNE-21
Weight Gross / Net (kg)
Air Cooled Model(s)
Water Cooled Model(s)
Large Cube
Type of Ice Medium Cube
Extra Small Cube
*These products can be produced upon customer request. Please take longer lead times into consideration. HOSHIZAKI–ISSUE 5
• Data shows the standard air cooled model • Production capacity (kg/24h): AT 10°C, WT 10°C.
