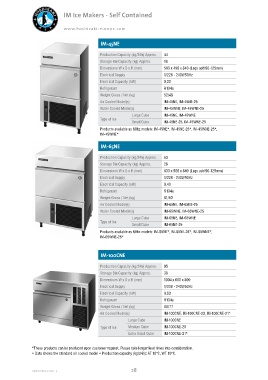

Page 27 - Hoshizaki 2016 produktkatalog(1)

IM Ice Makers - Self Contained

w w w. h o s h i z a k i - e u r o p e . c o m

IM-45NE

Production Capacity (kg/24h) Approx. 44

Storage Bin Capacity (kg) Approx. 18

Dimensions W x D x H (mm) 503 x 456 x 840 (Legs add 90-125mm)

Electrical Supply 1/220 - 240V/50Hz

Electrical Capacity (kW) 0,33

Refrigerant R134a

Weight Gross / Net (kg) 52/46

Air Cooled Model(s) IM-45NE, IM-45NE-25

Water Cooled Model(s) IM-45WNE, IM-45WNE-25

Type of Ice Large Cube IM-45NE, IM-45WNE
Small Cube IM-45NE-25, IM-45WNE-25

Products available as 60hz models: IM-45NE*, IM-45NE-25*, IM-45WNE-25*,
IM-45WNE*

IM-65NE

Production Capacity (kg/24h) Approx. 63

Storage Bin Capacity (kg) Approx. 26

Dimensions W x D x H (mm) 633 x 506 x 840 (Legs add 90-125mm)

Electrical Supply 1/220 - 240V/50Hz

Electrical Capacity (kW) 0,40

Refrigerant R134a

Weight Gross / Net (kg) 61/53

Air Cooled Model(s) IM-65NE, IM-65NE-25

Water Cooled Model(s) IM-65WNE, IM-65WNE-25

Type of Ice Large Cube IM-65NE, IM-65WNE
Small Cube IM-65NE-25

Products available as 60hz models: IM-65NE*, IM-65NE-25*, IM-65WNE*,
IM-65WNE-25*

IM-100CNE

Production Capacity (kg/24h) Approx. 95
38
Storage Bin Capacity (kg) Approx. 1004 x 600 x 800
1/220 - 240V/50Hz
Dimensions W x D x H (mm) 0,63
R134a
Electrical Supply 88/77
IM-100CNE, IM-100CNE-23, IM-100CNE-21*
Electrical Capacity (kW) IM-100CNE
IM-100CNE-23
Refrigerant IM-100CNE-21*

Weight Gross / Net (kg)

Air Cooled Model(s)

Large Cube

Type of Ice Medium Cube

Extra Small Cube

*These products can be produced upon customer request. Please take longer lead times into consideration.
• Data shows the standard air cooled model • Production capacity (kg/24h): AT 10°C, WT 10°C.
