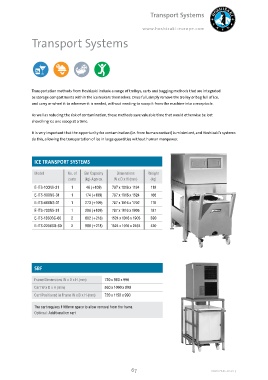

Page 66 - Hoshizaki 2016 produktkatalog(1)
P. 66
Transport Systems
w w w. h o s h i z a k i - e u r o p e . c o m
Transport Systems
Transportation methods from Hoshizaki include a range of trolleys, carts and bagging methods that are integrated
as storage compartments within the ice makers themselves. Once full, simply remove the trolley or bag full of ice,
and carry or wheel it to wherever it is needed, without needing to scoop it from the machine into a receptacle.
As well as reducing the risk of contamination, these methods save valuable time that would otherwise be lost
shovelling ice one scoop at a time.
It is very important that the opportunity for contamination (i.e. from human contact) is minimized, and Hoshizaki’s systems
do this, allowing the transportation of ice in large quantities without human manpower.
Ice Transport Systems
Model No. of Bin Capacity Dimensions Weight
carts (kg) Approx. W x D x H (mm) (kg)
E-ITS-100NS-31
E-ITS-500NS-31 1 46 (+109) 787 x 1016 x 1194 110
E-ITS-600NS-31 1 174 (+109) 787 x 1016 x 1524 166
E-ITS-700NS-31 1 273 (+109) 787 x 1016 x 1702 176
E-ITS-1350SG-60 1 296 (+109) 787 x 1016 x 1905 187
E-ITS-2250SG-60 2 602 (+218) 1524 x 1016 x 1905 390
2 968 (+218) 1524 x 1016 x 2464 420
SBF 720 x 960 x 990
560 x 1090 x 890
Frame Dimensions W x D x H (mm) 720 x 1150 x 990
Cart W x D x H (mm)
Cart Positioned in Frame W x D x H (mm)
The cart requires 1100mm space to allow removal from the frame.
Optional: Additional ice cart
