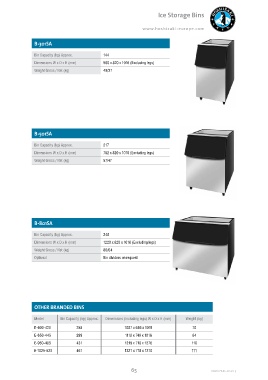

Page 64 - Hoshizaki 2016 produktkatalog(1)

B-301SA Ice Storage Bins

Bin Capacity (kg) Approx. w w w. h o s h i z a k i - e u r o p e . c o m
Dimensions W x D x H (mm)
Weight Gross / Net (kg) 144
560 x 820 x 1016 (Excluding legs)
49/37

B-501SA 217
762 x 820 x 1016 (Excluding legs)
Bin Capacity (kg) Approx. 57/47
Dimensions W x D x H (mm)
Weight Gross / Net (kg)

B-801SA 348
1220 x 820 x 1016 (Excluding legs)
Bin Capacity (kg) Approx. 86/64
Dimensions W x D x H (mm) Bin dividers on request
Weight Gross / Net (kg)
Optional

OTHER BRANDED BINS

Model Bin Capacity (kg) Approx. Dimensions (Including legs) W x D x H (mm) Weight (kg)

E-600-42S 258 1087 x 686 x 1019 70
E-650-44S 299 1118 x 749 x 1016 84
E-950-48S 431 1219 x 718 x 1270 110
E-1025-52S 467 1321 x 718 x 1270 111
