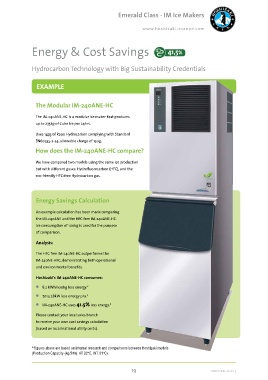

Page 18 - Hoshizaki 2016 produktkatalog(1)

Emerald Class - IM Ice Makers

w w w. h o s h i z a k i - e u r o p e . c o m

Energy & Cost Savings 41,5%

Hydrocarbon Technology with Big Sustainability Credentials

EXAMPLE

The Modular IM-240ANE-HC

The IM-240ANE-HC is a modular ice maker that produces
up to 235kg of Cube Ice per 24hrs.
Uses 147g of R290 Hydrocarbon complying with Standard
EN60335-2-24, allowable charge of 150g.

How does the IM-240ANE-HC compare?

We have compared two models using the same ice production
but with different gases: Hydrofluorocarbon (HFC), and the
eco-friendly HFC-free Hydrocarbon gas.

Energy Savings Calculation HOSHIZAKI–ISSUE 5

An example calculation has been made comparing
the IM-240ANE and the HFC free IM-240ANE-HC.
ice consumption of 100kg is used for the purpose
of comparison.

Analysis:

The HFC free IM-240NE-HC outperforms the
IM-240NE-HFC, demonstrating both operational
and environmental benefits.

Hoshizaki’s IM-240ANE-HC consumes:
MM 8.2 kWh/100kg less energy.*
MM 7014.28kW less energy p/a.*

MM IM-240ANE-HC uses 41.5% less energy.*

Please contact your local sales branch
to receive your own cost savings calculation
(based on local/national utility costs).

*Figures above are based on internal research and comparisons between Hoshizaki models
(Production Capacity (kg/24h): AT 32°C, WT 21°C).
