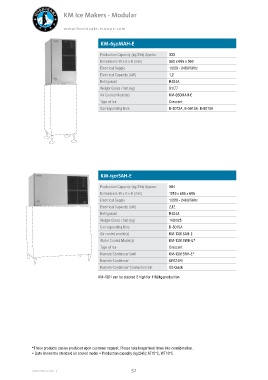

Page 51 - Hoshizaki 2016 produktkatalog(1)
P. 51
KM Ice Makers - Modular 333
560 x 695 x 950
w w w. h o s h i z a k i - e u r o p e . c o m 1/220 - 240V/50Hz
1,2
KM-650MAH-E R404A
91/77
Production Capacity (kg/24h) Approx. KM-650MAH-E
Dimensions W x D x H (mm) Crescent
Electrical Supply B-301SA, B-501SA, B-801SA
Electrical Capacity (kW)
Refrigerant
Weight Gross / Net (kg)
Air Cooled Model(s)
Type of Ice
Corresponding Bins
KM-1301SAH-E
Production Capacity (kg/24h) Approx. 584
Dimensions W x D x H (mm) 1219 x 695 x 695
Electrical Supply 1/220 - 240V/50Hz
Electrical Capacity (kW) 2,12
Refrigerant R404A
Weight Gross / Net (kg) 143/125
Corresponding Bins B-801SA
Air cooled model(s) KM-1301SAH-E
Water Cooled Model(s) KM-1301SWH-E*
Type of Ice Crescent
Remote Condenser Unit KM-1301SRH-E*
Remote Condenser URC14FE
Remote Condenser Connection Set OS Quick
KM-1301 can be stacked 2 high for 1168kg production
*These products can be produced upon customer request. Please take longer lead times into consideration.
• Data shows the standard air cooled model • Production capacity (kg/24h): AT10°C, WT10°C.
