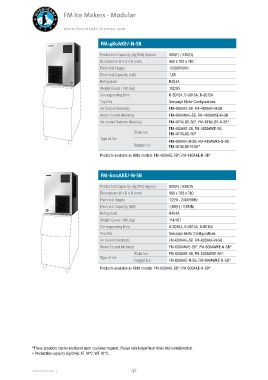

Page 41 - Hoshizaki 2016 produktkatalog(1)
P. 41
FM Ice Makers - Modular
w w w. h o s h i z a k i - e u r o p e . c o m
FM-480AKE/-N-SB
Production Capacity (kg/24h) Approx. 500(F) / 430(N)
Dimensions W x D x H (mm) 560 x 700 x 780
Electrical Supply 1/230V/50Hz
Electrical Capacity (kW) 1,65
Refrigerant R404A
Weight Gross / Net (kg) 102/95
Corresponding Bins B-301SA, B-501SA, B-801SA
Top Kits See page 66 for Configurations
Air Cooled Model(s) FM-480AKE-SB, FM-480AKE-N-SB
Water Cooled Model(s) FM-480AWKE-SB, FM-480AWKE-N-SB
Air cooled Remote Model(s) FM-481ALGE-SB*, FM-481ALGE-N-SB*
FM-480AKE-SB, FM-480AWKE-SB,
Type of Ice Flake Ice FM-481ALGE-SB*
Nugget Ice
FM-480AKE-N-SB, FM-480AWKE-N-SB,
FM-481ALGE-N-SB*
Products available as 60hz models: FM-480AKE-SB*, FM-480AKE-N-SB*
FM-600AKE/-N-SB
Production Capacity (kg/24h) Approx. 600(F) / 530(N)
560 x 700 x 780
Dimensions W x D x H (mm) 1/220 - 240V/50Hz
1,90(F) / 1,95(N)
Electrical Supply R404A
114/107
Electrical Capacity (kW) B-301SA, B-501SA, B-801SA
See page 66 for Configurations
Refrigerant FM-600AKE-SB, FM-600AKE-N-SB
FM-600AWKE-SB*, FM-600AWKE-N-SB*
Weight Gross / Net (kg) FM-600AKE-SB, FM-600AWKE-SB*
FM-600AKE-N-SB, FM-600AWKE-N-SB*
Corresponding Bins
Top Kits
Air Cooled Model(s)
Water Cooled Model(s)
Type of Ice Flake Ice
Nugget Ice
Products available as 60hz models: FM-600AKE-SB*, FM-600AKE-N-SB*
*These products can be produced upon customer request. Please take longer lead times into consideration.
• Production capacity (kg/24h): AT 10°C, WT 10°C.
HOSHIZAKI–ISSUE 5 42
